How to Deploy the Variphy OVA Virtual Appliance (VIVA)

Applies to:

• IT Administrators deploying Variphy Insight Virtual Appliance on virtual environments like VMware or Oracle VirtualBox.
• Variphy users managing CUCM analytics infrastructure.
• Organizations setting up new Variphy environments.

Common Causes or Issues

• When deploying Variphy for the first time in a virtualized environment.
• When upgrading or replacing existing Variphy deployments.
• To ensure proper setup of configurations such as hostname, network, and services.

Video Walkthrough

We’ve provided a video with step-by-step deployment instructions on our YouTube channel.

How to Deploy the Variphy OVA Virtual Appliance

This guide outlines how to deploy and run the Variphy Insight Virtual Appliance (VIVA), which is a Linux VM image in OVF format bundled with Tomcat, OpenSSH, and a database on Ubuntu Server.

Prerequisites:

• 64-bit host machine and OS

• Review Variphy CUCM Prerequisites

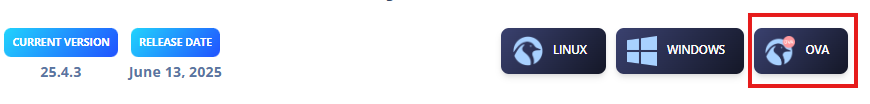

• Download the latest Variphy OVA: https://www.variphy.com/support/download




Supported Platforms:

• VMware vSphere/ESXi/ESX 4.x+

• Workstation 6.5.x – 7.x

• Fusion 2.x – 3.x |Fusion 2.x

• Player 3.x

• Server 2.x

• Oracle VM VirtualBox


Note: ESXi is required for using Deployment Options (Small, Standard, Large, Extra Large). Unsupported hosts default to Standard.

Deploying the Variphy OVA on vSphere/ESX

1. Extract the OVA Package.

Unzip the downloaded file to access the .ovf and other VM components.

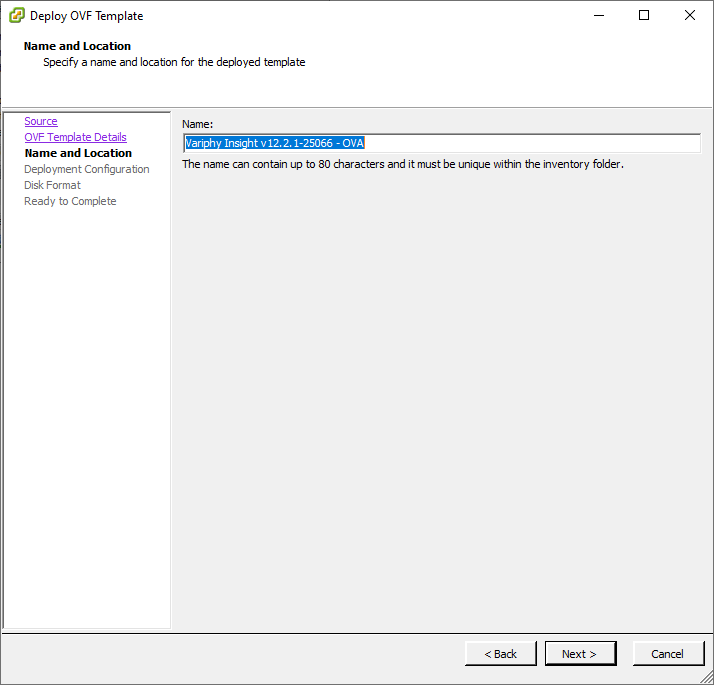

2. Open vSphere Client.

Navigate to File > Deploy OVF Template.

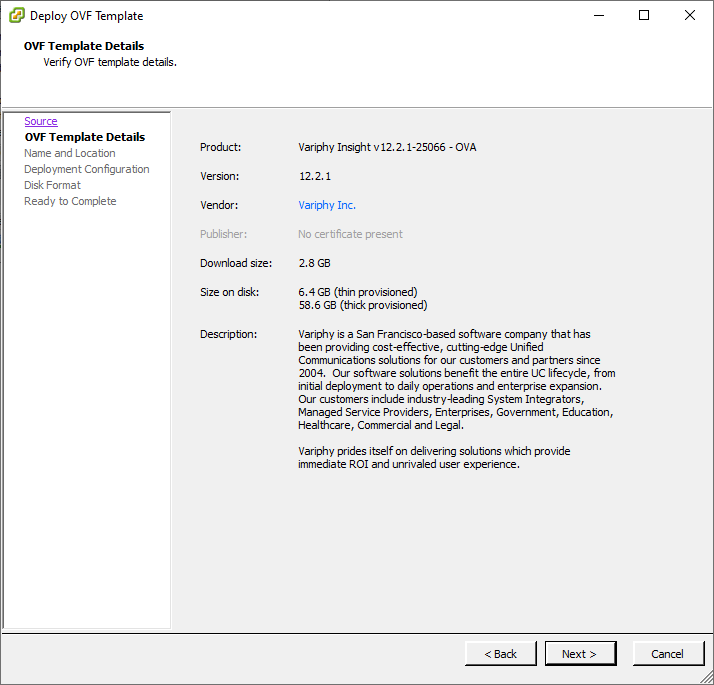

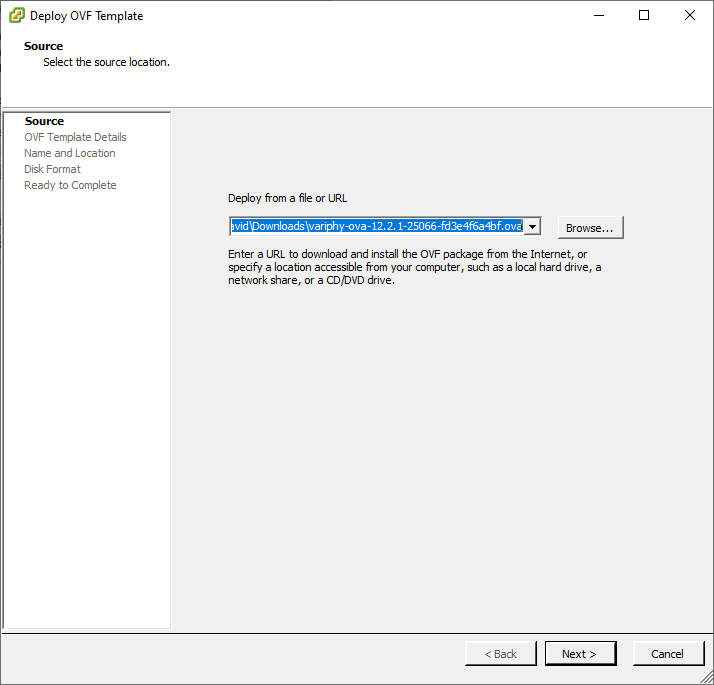

3. Select the OVF File.

Browse to the extracted .ovf file and select it.

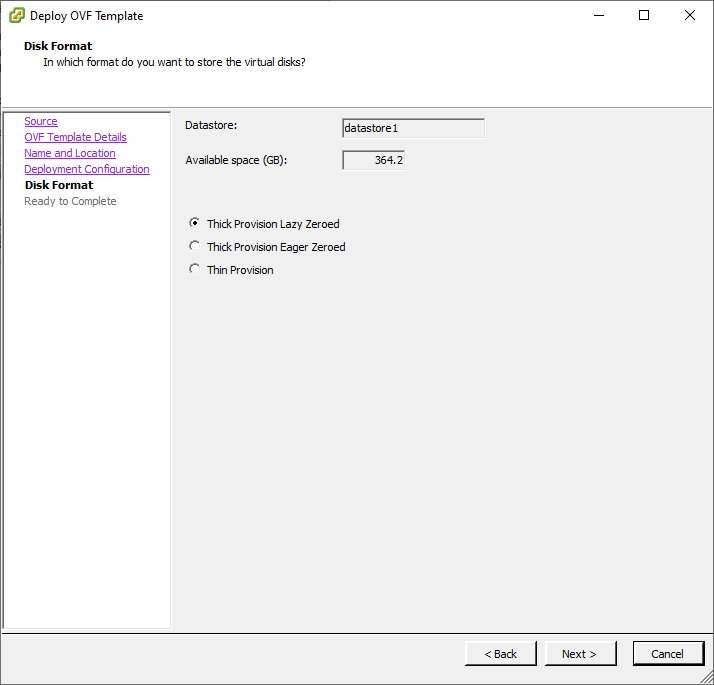

4. Set Disk Format.

Choose Thick Provision Lazy Zeroed when prompted during the deployment process.

Deploying on Oracle VirtualBox

1. Launch VirtualBox and Start Import.

Open Oracle VM VirtualBox and go to File > Import Appliance.

2. Choose the OVA File.

Select the downloaded .ova file and proceed.

3. Reinitialize Network Cards.

Check Reinitialize the MAC address of all network cards and click Import.

4. Locate the Imported Appliance.

Once imported, find VariphyInsight in the VirtualBox Manager.

5. Configure Network Mode.

Choose:

• Bridged Mode to share the Variphy VM on the network.

• NAT Mode to use Variphy locally only.


6. Start the Virtual Machine.

In the left pane of the Oracle VM VirtualBox Manager, select VariphyInsight and click Start.

When the machine is finished starting, the VirtualBoxVM console (labeled VairiphyInsight) appears and displays a Linux login prompt.

Logging in to the Virtual Machine

1. Access the Console.

Use the VirtualBox console to reach the Linux login prompt.

2. Enter Default Credentials.

Log in using:

• Username: variphyadmin

• Password: V@riphy!!


3. Reset Password.

You’ll be prompted to re-enter and change your password.

4. Configure System Settings.

Follow the setup wizard to define:

• Hostname.

• NTP Server.

• Time Zone.

• Network Settings.


Please read each step completely. Use the Tab or arrow keys to navigate and Enter key to make a selection. If you make a mistake, proceed to the next step until you are asked to confirm if your settings were entered correctly.

To re-run the configuration script to change settings, run the command line:

configure-host-settings

Logging in to Variphy Web Interface

1. Open a Browser.

Go to:

• http://x.x.x.x:8080 or

• https://x.x.x.x:8443

Replace x.x.x.x with the VM’s IP address.

2. Use Default Login.

• Username: Admin

• Password: Admin


Managing Variphy Services

To startup or shutdown Variphy, run the following command from the installation directory. For example, sudo systemctl stop variphy will stop the Variphy application.

1. Check Service Status.

sudo systemctl status mysql

sudo systemctl status variphy

2. Start Services.

sudo systemctl start mysql

sudo systemctl start variphy

3. Stop Services.

sudo systemctl stop mysql

sudo systemctl stop variphy

4. Restart Services.

sudo systemctl restart mysql

sudo systemctl restart variphy

Default Directories

Insight Installation:

/opt/insight

CDR FTP Directories:

/opt/variphy/data/cluster1/cdr/

/opt/variphy/data/cluster2/cdr/

/opt/variphy/data/cluster3/cdr/

Audit Log Directories:

/opt/variphy/data/cluster1/logs/

/opt/variphy/data/cluster2/logs/

/opt/variphy/data/cluster3/logs/

Still Need Help?

Email our support team at support@variphy.com or click the button below to access our ticket portal.

Please provide details about your question or issue, including any applicable screenshots, reports, or Variphy application log files.
