Background
Search Sets and Search Criteria are two of the most fundamental and important concepts in Variphy CUCM CDR Call Analytics, as they shape all reports, dashboard widgets, alerts, and history search results.
The Search Set and Search Criteria functionality in Variphy provide the ability to search for, filter, and include virtually any desired set of CDR call activity, no matter how broad or granular.
Search Set
A Search Set is just a set of 1 or more Search Criteria, along with some settings for how to apply the Criteria:
- Name – used just for display and descriptive purposes
- Include/Exclude Call Duration – whether or not to also apply additional filtering based upon call duration
- Match All Criteria – how to apply multiple criteria values together, essentially using “AND” vs “OR” logic when possible (with Match All enabled, “AND” will be used)
- Search Criteria – one or more search types with one or more values to query for
Search Criteria
Each Search Criteria defines what specific values to match with CUCM CDR data.
In Variphy, Search Criteria are comprised of the following:
<Search Type> <Conditional Type> <Value>
Every Search Criteria has a Search Type – this defines which CUCM CDR property or properties to match against.
A CUCM CDR record has over 100 properties, such as:
- device name which originating the call (“Originating Device Name”)
- device name to which the call terminated (“Terminating Device Name”)
- directory/phone number which originated the call (“Calling Party Number”)
- directory/phone number which was dialed (“Original Called Party Number”)
- directory/phone number which was received the call (“Final Called Party Number”)
The Search Criteria Conditional Type defines what type of condition to apply, such as “equals 911”, “starts with 9”, or “does not contain SIP”.
Text Conditional Types
- equals
- starts with
- ends with
- contains
- does not equal
- does not start with
- does not end with
- does not contain
Numeric Conditional Types
- equals
- greater than
- great than or equal to
- less than
- less than or equal to
Search Value
The Search Value is the specific text or numeric value to be queried for, using the Conditional Type, for example “1000” or “SIP” .
Wildcards
For text-based Search Types, a capital “X” digit can be used to represent a wildcard digit. Multiple wild card digits can be used in the same Value, which allows you to specify lengths of values.
For example, the following Search Criteria will yield all CDR call activity from a 4 digit Calling Party Number, which begins with a “2”.
Calling Party Number equals 2XXX
CDR Search Set Examples

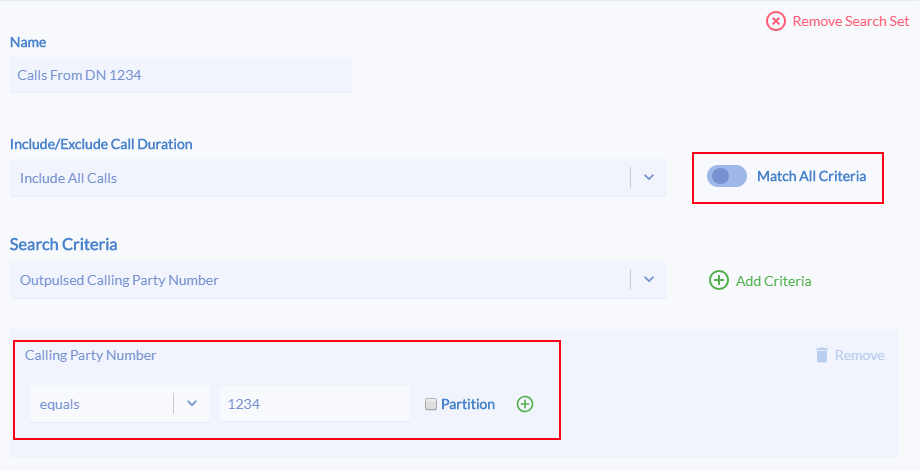

Example 1 – Single Search Type and Value
The following example Search Criteria defines Calling Party Number equals 1234, which means all calls originating only from directory/phone number 1234.
Since there is only 1 Search Type (Calling Party Number) and Value (1234), the Match All Criteria field is not applicable.

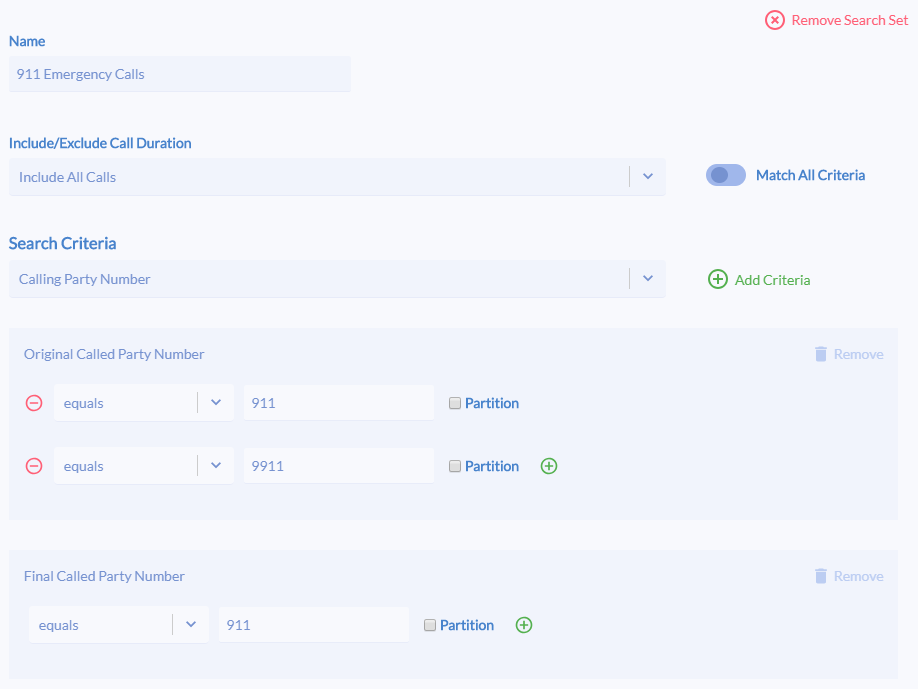

Example 2 – Multiple Search Types With Match Any
In this example, there are 2 different CDR Search Types and 3 unique Values, which will be combined using a “Match Any” approach.
Since the Match All Criteria is toggled off, this Search Set will find all CUCM CDRs which match any of the following Search Criteria values:
- Original Called Party Number equals 911
- Original Called Party Number equals 9911
- Final Called Party Number equals 911

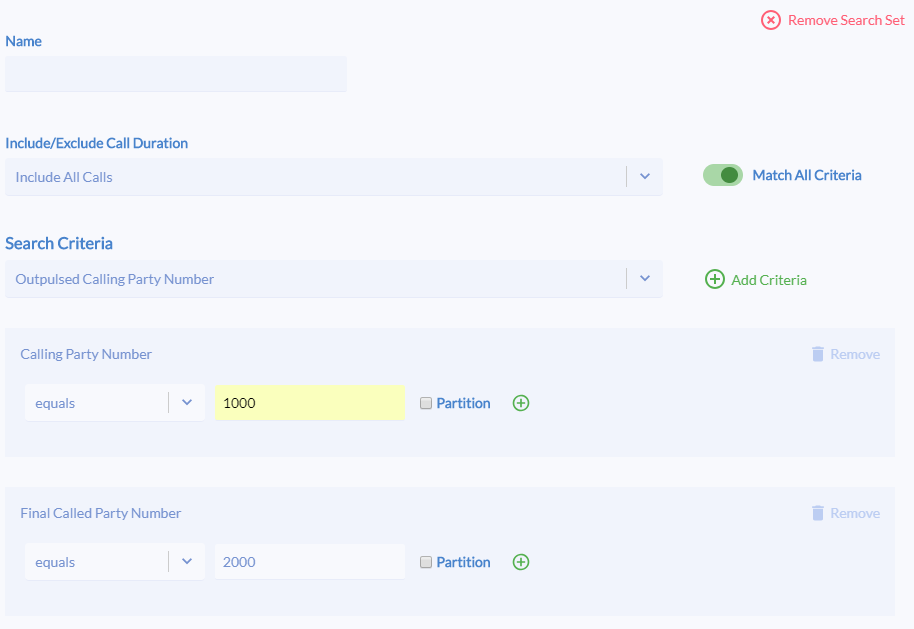

Example 3 – Multiple Search Types With Match All
In this example, there are 2 different CDR Search Types and Values, which will be combined using a “Match All” approach.
Since the Match All Criteria is toggled on, this Search Set will find all CUCM CDRs which match both/all of the following Search Criteria values:
- Calling Party Number equals 1000
- Final Called Party Number equals 2000
With the following settings, this Search Set will only find CUCM CDRs which originated from Calling Party Number 1000 which also were received by Final Called Party Number 2000.

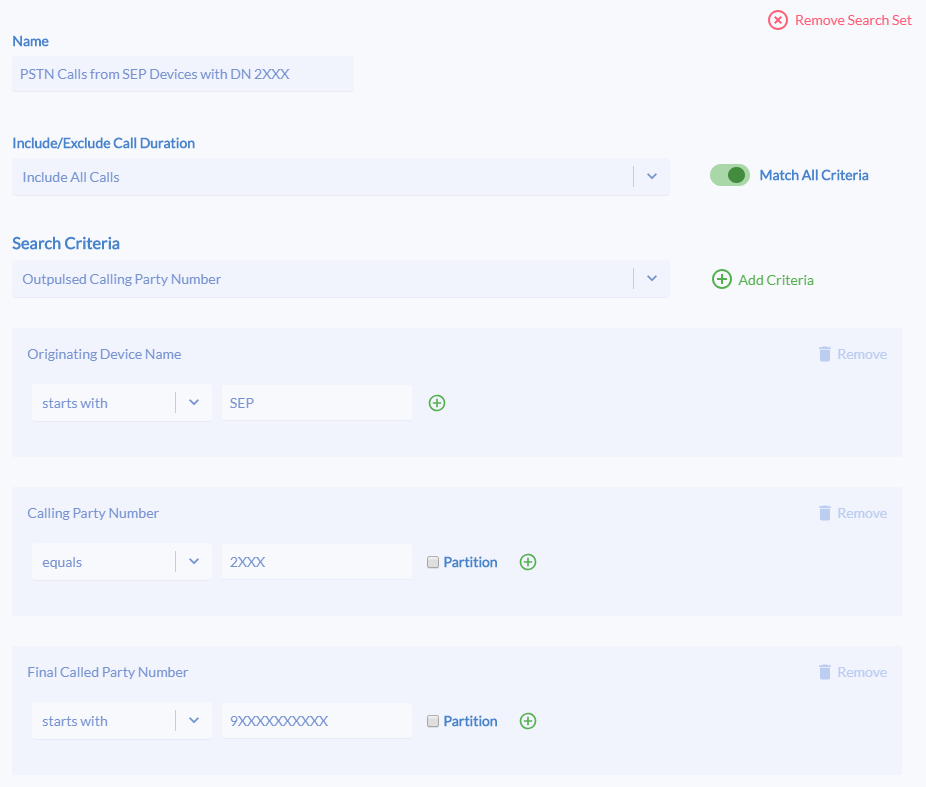

Example 4 – Multiple Search Types With Match All And Wildcards
In this example, this Search Set will result in all CDR call activity which matches all of the following:
- Originated from CUCM devices with names beginning with “SEP”
- Originated from 4-digit Calling Party Numbers beginning with “2”
- Terminating to 11-digit phone numbers beginning with “9”
This type of Search Set would identify all outgoing PSTN calls that originated from Cisco IP phones (those with CUCM device names beginning with “SEP”) with a particular DN range (2000 – 2999).
The Final Called Party Number starts with 9XXXXXXXXXX contains 10 wild card digits. With the “starts with” conditional”, this would match all Final Called Party Numbers which are at least 11 digits or longer, which also begin with “9”, which is a typical access code users would dial to reach the PSTN.
CUCM CDR Search Type Dictionary
| CUCM CDR Search Type | Description |
|---|---|
| Originating Party | |
| Calling Party Number | The CUCM DN or PSTN phone number from which the call originated |
| Outpulsed Calling Party Number | When normalization or localization takes place at the originating device, the calling party number which was outpulsed from the originating device |
| Calling Party SIP URI | The SIP URI of the calling party, if it uses a directory URI for call addressing |
| Originating Device Name | The name of the CUCM device from which the call originated |
| Originating CUCM Device Description | The description of the CUCM device from which the call originated |
| Originating CUCM Device Type | The Product Type (e.g. Cisco 8851 or SIP Trunk) of the CUCM device from which the call originated |
| Originating CUCM Device Pool | The Device Pool of the CUCM device from which the call originated |
| Originating Device IP Address | The IP address of the device from which the call originated |
| Originating CUCM Department | The name of the department from CUCM to which the Originating End User belongs |
| Originating CUCM End User ID | The username of the CUCM end user from which the call originated |
| Originating CUCM Manager User ID | The username of the originating end user’s Manager User |
| Originating CUCM End User Custom Attribute 1 | The Custom LDAP Attribute 1 value from CUCM for the originating end user |
| Originating CUCM End User Custom Attribute 2 | The Custom LDAP Attribute 2 value from CUCM for the originating end user |
| Originating CUCM End User Custom Attribute 3 | The Custom LDAP Attribute 3 value from CUCM for the originating end user |
| Originating CUCM End User Custom Attribute 4 | The Custom LDAP Attribute 4 value from CUCM for the originating end user |
| Originating CUCM End User Custom Attribute 5 | The Custom LDAP Attribute 5 value from CUCM for the originating end user |
| Calling Party Number Partition | The name of the CUCM partition, if any, for the calling party number |
| Calling Party Unicode Login User ID | The login user ID of the calling party. When extension mobility is involved, this will search on the originating user login |
| Mobile Calling Party Number | If the original calling device is a mobile device, this field specifies the mobile cellular number |
| Mobile Originating Device Name | For calls from a mobile device, this field specifies the device name of the calling party. If the mobile call uses a remote destination profile the device name is the mobile number and remote destination profile name. For example, mobileNumber: RDP-name. If the mobile device uses a mobile identity, the device name is the mobile identity name. If the original device is not a mobile device, this field remains empty. |
| Dialed Party | |
| Original Called Party Number | The CUCM DN or PSTN phone number to which the original call was presented, prior to any call forwarding. If translation rules are configured, this number reflects the called number after the translations have been applied. |
| Outpulsed Original Called Party Number | The Original called party number outpulsed from the device. |
| Original Called Party SIP URI | The directory URI to which the original call was addressed, prior to any call forwarding, provided the call was addressed to a directory URI. If a blended address is used for the called party, this field specifies the directory URI portion of the blended address. |
| Dialed CUCM Department | The name of the department from CUCM to which the Dialed End User belongs |
| Dialed CUCM End User ID | The username of the CUCM end user who was originally called/dialed |
| Dialed CUCM Manager User ID | The username of the dialed end user’s Manager User |
| Dialed CUCM End User Custom Attribute 1 | The Custom LDAP Attribute 1 value from CUCM for the dialed end user |
| Dialed CUCM End User Custom Attribute 2 | The Custom LDAP Attribute 2 value from CUCM for the dialed end user |
| Dialed CUCM End User Custom Attribute 3 | The Custom LDAP Attribute 3 value from CUCM for the dialed end user |
| Dialed CUCM End User Custom Attribute 4 | The Custom LDAP Attribute 4 value from CUCM for the dialed end user |
| Dialed CUCM End User Custom Attribute 5 | The Custom LDAP Attribute 5 value from CUCM for the dialed end user |
| Original Called Party Number Partition | The name of the CUCM partition, if any, for the Original Called Party Number |
| Original Called Party Pattern | The pattern to which the original call was placed before any configured translation is applied. Calls to Translation Pattern will always populate the pattern after applying the configured transformation on the translation pattern. |
| Terminating Party | |
| Final Called Party Number | The CUCM DN or PSTN phone number to which the call finally gets presented, until it is answered or rings out. If no forwarding occurs, this number shows the same number as the Original Called Party Number. If a blended address is used, this field specifies the directory number portion of the blended address. For calls to a conference bridge, this field contains the actual identifier of the conference bridge, which is an alphanumeric string (for example, b0019901001). |
| Outpulsed Called Party Number | The called party number gets outpulsed from the device. This field gets populated only when normalization or localization takes place at the device. |
| Final Called Party SIP URI | The directory URI address to which the call finally gets presented, if the final address is a directory URI. If no forwarding occurs, this field shows the same directory URI as the Original Called Party SIP URI field. If a blended address is used for the called number, this field specifies the directory URI portion of the blended address. For calls to a conference bridge, this field contains the actual identifier of the conference bridge, which is an alphanumeric string (for example, b0019901001). |
| Terminating Device Name | The name of the CUCM device from which the call terminated |
| Terminating CUCM Device Description | The CUCM description of the Terminating Device |
| Terminating CUCM Device Type | The Product Type (e.g. Cisco 8851 or SIP Trunk) of the CUCM device to which the call terminated |
| Terminating CUCM Device Pool | The CUCM Device Pool of the CUCM device to which the call terminated |
| Terminating Device IP Address | The IP address of the CUCM device to which the call terminated |
| Terminating CUCM Department | The name of the department from CUCM to which the Terminating End User belongs |
| Terminating CUCM End User ID | The username of the CUCM end user who received the call |
| Terminating CUCM Manager User ID | The username of the terminating end user’s Manager User |
| Terminating CUCM End User Custom Attribute 1 | The Custom LDAP Attribute 1 value from CUCM for the terminating end user |
| Terminating CUCM End User Custom Attribute 2 | The Custom LDAP Attribute 2 value from CUCM for the terminating end user |
| Terminating CUCM End User Custom Attribute 3 | The Custom LDAP Attribute 3 value from CUCM for the terminating end user |
| Terminating CUCM End User Custom Attribute 4 | The Custom LDAP Attribute 4 value from CUCM for the terminating end user |
| Terminating CUCM End User Custom Attribute 5 | The Custom LDAP Attribute 5 value from CUCM for the terminating end user |
| Final Called Party Number Partition | The name of the CUCM partition for the final called party number |
| Final Called Party Unicode Login User ID | The login user ID of the final called party. When extension mobility is involved, this will search on the terminating/receiving user login |
| Mobile Final Called Party Number | If the final called device is a mobile device, this field specifies the mobile called party. If the final called device is not a mobile device, this field remains empty. |
| Mobile Terminating Device Name | For calls where the destination is a mobile device, this field specifies the name of the destination mobile device. If the mobile device uses a remote destination profile the device name is the mobile number and remote destination profile name. For example, mobileNumber: RDP-name. If the mobile device uses a mobile identity, the device name is the mobile identity name. If the destination device is not a mobile device, this field remains empty. |
| Final Called Party Pattern | The pattern of the final called party to which the call is presented until that call is answered or ringing has ended. If no forwarding occurred, this pattern is the same as Original Called Party Pattern. This field indicates the pattern before any configured translation rules are applied. This value is the same as the Final Called Party Number if the number is a direct match without any translation |
| Originating or Dialed Party | |
| Calling Party Or Original Called Party Number | The CUCM DN or PSTN number from which the call originated or was originally called/dialed |
| Originating Or Dialed CUCM Department | The name of the department from CUCM to which either the Originating or Dialed End User belongs |
| Originating Or Dialed CUCM End User ID | The username of the CUCM end user from which the call originated or was originally called/dialed |
| Originating Or Dialed CUCM Manager User ID | The username of the originating or dialed end user’s Manager User |
| Originating or Dialed CUCM End User Custom Attribute 1 | The Custom LDAP Attribute 1 value from CUCM for either the originating or dialed end user |
| Originating or Dialed CUCM End User Custom Attribute 2 | The Custom LDAP Attribute 2 value from CUCM for either the originating or dialed end user |
| Originating or Dialed CUCM End User Custom Attribute 3 | The Custom LDAP Attribute 3 value from CUCM for either the originating or dialed end user |
| Originating or Dialed CUCM End User Custom Attribute 4 | The Custom LDAP Attribute 4 value from CUCM for either the originating or dialed end user |
| Originating or Dialed CUCM End User Custom Attribute 5 | The Custom LDAP Attribute 5 value from CUCM for either the originating or dialed end user |
| Calling Party Or Original Called Party Number Partition | The name of the CUCM partition of the Calling Party or Original Called Party Number |
| Originating or Terminating Party | |
| Calling Party Or Final Called Party Number | The CUCM DN or PSTN number of the Calling Party or Final Called Party Number |
| Calling Or Final Called Party SIP URI | The SIP URI of the calling or final called party, if it uses a directory URI for call addressing |
| Originating Or Terminating Device Name | The name of the CUCM device from which the originated or to which the call terminated |
| Originating Or Terminating CUCM Device Description | The CUCM description of the CUCM device from which the originated or to which the call terminated |
| Originating Or Terminating CUCM Device Type | The Product Type (e.g. Cisco 8851 or SIP Trunk) of the CUCM device from which the originated or to which the call terminated |
| Originating Or Terminating CUCM Device Pool | The CUCM Device Pool of the CUCM device from which the originated or to which the call terminated |
| Originating Or Terminating CUCM Route Group | The CUCM Route Group (which is a set of devices) to search for as either the Originating or Terminating device |
| Originating Or Terminating CUCM CDR Device | The CDR Device, as configured in Variphy, to search for as either the Originating or Terminating device |
| Originating Or Terminating CUCM CDR Device List | The CDR Device List (which is a set of devices), as configured in Variphy, to search for as either the Originating or Terminating device |
| Originating Or Terminating Device IP Address | The IP address of the CUCM device from which the originated or to which the call terminated |
| Originating Or Terminating CUCM Department | The name of the department from CUCM to which either the Originating or Terminating End User belongs |
| Originating Or Terminating CUCM End User ID | The username of the CUCM end user from who originating or received the call |
| Originating Or Terminating CUCM Manager User ID | The username of the originating or terminating end user’s Manager User |
| Originating or Terminating CUCM End User Custom Attribute 1 | The Custom LDAP Attribute 1 value from CUCM for either the originating or terminating end user |
| Originating or Terminating CUCM End User Custom Attribute 2 | The Custom LDAP Attribute 2 value from CUCM for either the originating or terminating end user |
| Originating or Terminating CUCM End User Custom Attribute 3 | The Custom LDAP Attribute 3 value from CUCM for either the originating or terminating end user |
| Originating or Terminating CUCM End User Custom Attribute 4 | The Custom LDAP Attribute 4 value from CUCM for either the originating or terminating end user |
| Originating or Terminating CUCM End User Custom Attribute 5 | The Custom LDAP Attribute 5 value from CUCM for either the originating or terminating end user |
| Calling Party Or Final Called Party Number Partition | The name of the CUCM partition of the Calling Party or Final Called Party Number |
| Calling Or Final Called Party Unicode Login User ID | The login user ID of either the calling party or final called party, when extension mobility is involved, this will search on the originating or terminating user login |
| Mobile Calling Or Final Called Party Number | If the calling or terminating device is a mobile device, this field specifies the mobile cellular number. |
| Mobile Originating Or Terminating Device Name | For calls from or to a mobile device, this field specifies the device name of the Calling or Terminating Party. If the mobile call uses a remote destination profile the device name is the mobile number and remote destination profile name. For example, mobileNumber: RDP-name. If the mobile device uses a mobile identity, the device name is the mobile identity name. |
| Dialed or Terminating Party | |
| Original Or Final Called Party Number | The CUCM DN or PSTN number of the Original or Final Called Party Number |
| Dialed Or Terminating CUCM Department | The name of the department from CUCM to which either the Dialed or Terminating End User belongs |
| Dialed Or Terminating CUCM End User ID | The username of the CUCM end user from who was originally called/dialed or received the call |
| Dialed Or Terminating CUCM Manager User ID | The username of the dialed or terminating end user’s Manager User |
| Dialed or Terminating CUCM End User Custom Attribute 1 | The Custom LDAP Attribute 1 value from CUCM for either the dialed or terminating end user |
| Dialed or Terminating CUCM End User Custom Attribute 2 | The Custom LDAP Attribute 2 value from CUCM for either the dialed or terminating end user |
| Dialed or Terminating CUCM End User Custom Attribute 3 | The Custom LDAP Attribute 3 value from CUCM for either the dialed or terminating end user |
| Dialed or Terminating CUCM End User Custom Attribute 4 | The Custom LDAP Attribute 4 value from CUCM for either the dialed or terminating end user |
| Dialed or Terminating CUCM End User Custom Attribute 5 | The Custom LDAP Attribute 5 value from CUCM for either the dialed or terminating end user |
| Original Or Final Called Party Number Partition | The name of the CUCM partition of the Original or Final Called Party Number |
| Original Or Final Called Party Pattern | The pattern of the Original or Final Called Party to which the call is presented until that call is answered or ringing has ended. If no forwarding occurred, this pattern is the same as Original Called Party Pattern. This field indicates the pattern before any configured translation rules are applied. This value is the same as the Final Called Party Number if the number is a direct match without any translation |
| Originating, Dialed or Terminating Party | |
| Calling Party, Original, Or Final Called Party Number | The CUCM DN or PSTN number of the Calling Pary, Original, or Final Called Party Number |
| Calling, Original, Or Final Called Party SIP URI | The SIP URI of the calling, original, or final called party, if it uses a directory URI for call addressing |
| Originating, Dialed Or Terminating CUCM Department | The name of the department from CUCM to which either the Originating, Dialed, or Terminating End User belongs |
| Originating, Dialed Or Terminating CUCM End User ID | The username of the CUCM end user from who originated, was originally called/dialed or received the call |
| Originating, Dialed Or Terminating CUCM Manager User ID | The username of the originating, dialed or terminating end user’s Manager User |
| Originating, Dialed or Terminating CUCM End User Custom Attribute 1 | The Custom LDAP Attribute 1 value from CUCM for the originating, dialed or terminating end user |
| Originating, Dialed or Terminating CUCM End User Custom Attribute 2 | The Custom LDAP Attribute 2 value from CUCM for the originating, dialed or terminating end user |
| Originating, Dialed or Terminating CUCM End User Custom Attribute 3 | The Custom LDAP Attribute 3 value from CUCM for the originating, dialed or terminating end user |
| Originating, Dialed or Terminating CUCM End User Custom Attribute 4 | The Custom LDAP Attribute 4 value from CUCM for the originating, dialed or terminating end user |
| Originating, Dialed or Terminating CUCM End User Custom Attribute 5 | The Custom LDAP Attribute 5 value from CUCM for the originating, dialed or terminating end user |
| Calling, Original Or Final Called Party Number Partition | The name of the CUCM partition of the Calling Party, Original, or Final Called Party Number |
| Hunt Pilot | |
| Hunt Pilot Number | The hunt pilot DN through which the call is routed |
| Hunt Pilot Number Partition | The partition for the Hunt Pilot Number (DN) |
| Hunt Pilot Pattern | The huntPilot pattern as configured in CUCM. This field is populated only when the HuntPilot member answers the call which is placed either directly or as a result of redirection to the huntPilot. |
| Duration | |
| Call Duration (seconds) | The time duration during which the call was connected, in seconds |
| Ring Duration (seconds) | The time duration during which the call was in the ringing state, in seconds |
| Queue Duration (seconds) | The time duration during which native call queuing in CUCM was involved, in seconds |
| Mobile Originating Call Duration (seconds) | If the calling party is a mobile device, this field specifies the call duration in the mobile network of the originating device, in seconds |
| Terminating Originating Call Duration (seconds) | If the destination device is a mobile device, this field specifies the call duration in the mobile network for the destination device, in seconds |
| Signaling | |
| Originating Or Terminating Cause Code | Either the Originating or Terminating Cause Code |
| Originating Cause Code | For calls that are cleared by the originating party, this field reflects the reason for clearance. CUCM currently uses the Q.850 codes and some Cisco Unified Communications Manager defined codes. See topics related to call termination cause codes for a listing. |
| Terminating Cause Code | For calls that the destination party cleared, this field reflects the reason for the clearance. See topics related to call termination cause codes for a listing of the valid values per Q.850. For calls that the originating party clears, this field stays zero. In addition to the standard values that are described in Q.850, when a call gets split by a feature (transfer/conference), the CDR terminates, and this field gets set to 393216. This represents a proprietary value for this field. |
| Video | |
| Originating Video Codec | This field identifies the codec type that the originator uses to transmit video (H.261, H.263, or H.264.) |
| Terminating Video Codec | This field identifies the codec type that the terminating party uses to transmit video (H.261, H.263, or H.264). |
| Originating Or Terminating Video Codec | Either the Originating or Terminating Video Codec |
| Call Identifier | |
| Global Call Identifier | The unique call identity value that is assigned to each call. The system allocates this identifier independently on each call server. Values get chosen sequentially when a call begins. A value gets assigned for each call, successful or unsuccessful. When Cisco Unified Communications Manager restarts, it checks the file for the current globalCallID_callId number and assigns the next 1000th number to the next GlobalCallID_callId. All records that are associated with a standard call have the same Global Call ID in them. |
| Call Leg Identifier | The originating or terminating leg of a call. Be aware that this value is unique within a cluster. If the leg of a call persists across several sub-calls, and consequently several CDRs (as during a call transfer), this value remains constant. |
| Redirection | |
| Last Redirect SIP URI | For forwarded calls that use a directory URI for addressing, this field specifies the directory URI of the next to last hop before the call reaches its final destination. If only one hop occurs, this number matches the Original Called Party SIP URI. If a blended address is used, this field contains only the directory URI portion of the blended address. For calls that are not forwarded, this field matches the Original Called Party SIP URI and the Final Called Party SIP URI . For calls to a conference bridge, this field contains the actual identifier of the conference bridge, which is an alphanumeric string (for example, b0019901001). |
| Original Called Party Redirect Reason | The reason for a redirect of the original called party. |
| Last Redirect Reason | The last redirect reason for redirection. |
| Last Redirect DN | For forwarded calls, this field specifies the phone number of the next to last hop before the call reaches its final destination. If only one hop occurs, this number matches the OriginalCalledPartyNumber. If a blended address is used for call addressing, this field contains only the directory number portion of the blended address. For calls that are not forwarded, this field matches the OriginalCalledPartyNumber and the FinalCalledPartyNumber. For calls to a conference bridge, this field contains the actual identifier of the conference bridge, which is an alphanumeric string (for example, b0019901001). |
| Outpulsed Last Redirecting Number | The Last Redirecting number outpulsed from the device. |
| Last Redirecting Party Pattern | The pattern of the last party which redirected the call to the current called party. If there is no redirection, the field has the same value as the Original Called Party Pattern. |
| Feature | |
| Forced Authorization Code | The Forced Authorization Code (FAC) that is associated with the call. |
| Forced Authorization Level | The numeric level of the FAC. |
| Client Matter Code | Before the system extends a call, the user enters a client matter code that can be used for assigning account or billing codes to calls. This field displays the client matter code. |
| On Behalf Of | |
| Originating Call Termination On Behalf Of | This field specifies code that identifies why the originator was terminated. For example, if the originator of the call hangs up the phone, the OnBehalfOf code shows “12” for Device. If the call terminates because of a transfer, the OnBehalfOf code shows “10” for Transfer. |
| Terminating Call Termination On Behalf Of | This field specifies code that identifies why the destination was terminated. For example, if the destination of the call hangs up the phone, the OnBehalfOf code shows “12” for Device. If the call terminates because of a transfer, the OnBehalfOf code shows “10” for Transfer. |
| Join On Behalf Of | This field specifies code that identifies the reason for a join. For example, if the join takes place on behalf of a transfer, the OnBehalfOf code specifies “10.” |
| Original Called Party Redirect On Behalf Of | This field specifies code that identifies the reason for redirection of the original called party. For example, if the original called party was redirected because of a conference, the OnBehalfOf code specifies “4.” |
| Last Redirect On Behalf Of | This field specifies code that identifies the reason for redirection of the last redirected party. For example, if the last redirected party was redirected on behalf of a conference, the OnBehalfOf code specifies “4.” |
| Miscellaneous/Other | |
| Called Party Pattern Usage Type | The type of pattern of the called party. |
| Comment | This text can describe details about the call. For example, malicious calls will have “MALICIOUS” in this value |
